Product Description:

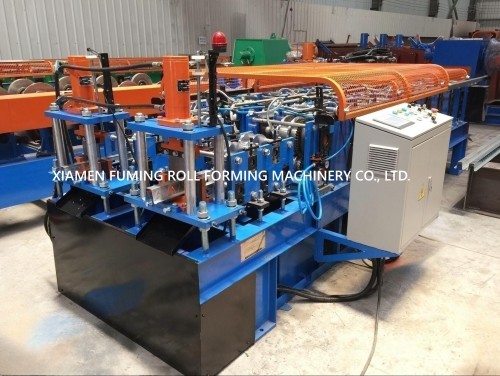

This Roll Forming Machine is designed to produce roofing
truss/batten/top hat profiles with precision and efficiency. The
machine is equipped with 45# steel rollers that have been hard
chrome coated for added strength and durability. It features 10
stations for forming the profile and is powered by a 5.5KW driving
motor. The cutting length is adjustable to suit different needs.
With its robust construction and superior performance, this machine
is the perfect choice for creating top hat profiles.
Features:
- Product Name: Roofing Truss/Batten/Top Hat Roll Forming Machine
- Roller Stations: 10 Stations
- Cutting Type: Hydraulic Cutting
- Power: 5.5KW
- Cutting Length: Adjustable
- Roller Material: 45# Steel, Hard Chrome Coated
Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR ROOFING TRUSS/BATTEN PROFILE(DOUBLE SIDES) |
|
| Material Specification |
| Thickness | 0.48mm to 0.75mm/0.6mm to 1.2mm |
| Feeding width | Approx.156mm/205mm |
| Material | GI, Aluzinc |
| Yield strength | 550MPa or customized |
|
| Machine Components |
| 1.5Ton*300mm Simple Decoiler(Quantity: one) |
| Load capacity | Max.1.5Tons |
| Coil inner-diameter | 400-580mm |
| Coil outer-diameter | Max.1600mm |
| Coil width | Max.300mm |
|
| Roll Forming Machine(Quantity: two) |
| Driving system | Gear/sprocket |
| Forming station | 10 stations to form YX40-86 profile and YX61-96 profile |
| Rib forming | 2 units, each profile one unit |
| 5 rollers shaping device | 2 units, each profile one unit |
| Roller material | 45# steel, hard chorme coated |
| Option for roller material | Cr12, Cr12Mov |
| Shafts Diameter | Φ75mm |
| Main motor | 5.5KW, frequency speed control |
| Line speed of rollformer | Approx. 15-18m/min or customized |
|
| Cooling System(Quantity: one) |
| 1 unit shared by YX40-86 profile and YX61-96 profile |
| Water pump motor | 1/4HP |
|
| Hydraulic Cutting Device(Quantity: two) |
| Cutting type | No blanking cut |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 3KW |
|
| PLC Control System(Quantity: one) |
| Function | Control quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm or customized |
| Control Voltage | 24V |
|
| 2 Meters Long Product Rack(Quantity: one) |
Applications:
Are you in search of a roofing truss/batten/top hat roll forming
machine that can meet your requirements? Look no further than the
one from XIAMEN FUMING. This roll forming machine is the ideal
choice for producing high speed and high-precision roofing
truss/batten/top hat.
Support and Services:
Technical Support and Service for Roofing Truss/Batten/Top Hat Roll
Forming Machine
We provide comprehensive technical support and service for Roofing Truss/Batten/Top Hat Roll Forming Machine. Our team of experienced engineers and
technicians can help you achieve optimal usage of the machine and
maximize its performance.
- We provide professional installation and commissioning services.
- We provide remote and on-site technical support.
- We provide troubleshooting services and respond to customer
inquiries.
- We provide preventive maintenance services to keep the machine
running smoothly.
- We provide spare parts supply and repair services.
- We provide training and technical guidance.
If you have any questions or need technical support for Roofing Truss/Batten/Top Hat Roll Forming Machine, please don't hesitate to contact us. We are here to help you.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
