Product Description:

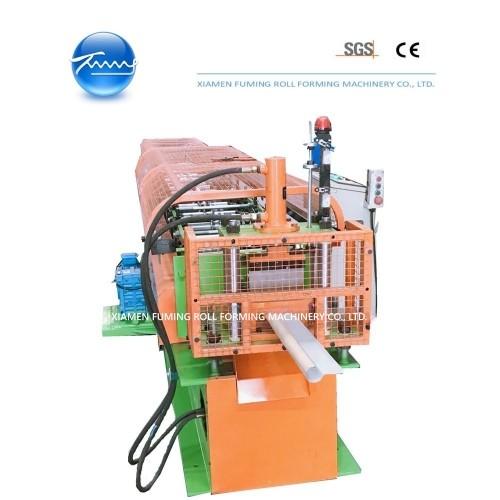

This Gutter Roll Forming Machine is a kind of production line which
is specifically designed and developed for the production of
Gutter. It has a drive mode of gear/sprocket and a control system
of PLC control that ensures reliable operation and high production
efficiency. It also adopts hydraulic cutting method for more
accurate and efficient cutting, with a forming speed of 15m/min.
This Gutter Roll Forming Machine ensures stable performance, high
production capacity and excellent product quality.
Features:
- Product Name: Gutter Roll Forming Machine
- Material: PPGI
- Control System: PLC Control
- Drive Mode: Gear/sprocket
- Forming Speed: 15m/min
- Cutting Mode: Hydraulic Cutting
- Colorbond Gutter: Yes
- Drainage System: Yes
Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR YX50-116 GUTTER PROFILE |
|
| Material Specification |
| Thickness | 0.4mm-0.5mm |
| Feeding width | Approx.198mm |
| Material | PPGI |
| Yield strength | 300MPa to 400MPa |
|
| Machine Components |
| 5Ton*600mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 14 stations |
| Roller material | 40CR steel, CNC lathes, hard chrome coated |
| Shafts Diameter | Φ60mm |
| Main motor | 4KW, frequency speed control |
| Line speed of rollformer | Approx. 15m/min |
|
| Hydraulic Cutting Device |
| Cutting type | Slug breaker |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 3KW |
|
| PLC Control System |
| Function | Control quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
|
| Product Rack | Un-powered, 1 unit |
Applications:
This roll forming machine is ideal for producing gutters, which are
widely used in residential and commercial buildings.It features a forming speed of 15m/min and PLC control system for
precise and accurate cutting. The cutting mode is hydraulic. With its high production capacity, the machine can quickly and
efficiently produce gutters for drainage applications. Colorbond gutters is with long-lasting durability and corrosion-resistant properties.It is perfect for any home or business that requires a durable and
long-lasting drainage system.
Support and Services:
Technical Support and Service for Roll Forming Machine
We provide comprehensive technical support and service for Roll
Forming Machine. Our team of experienced engineers and technicians
can help you achieve optimal usage of the machine and maximize its
performance.
- We provide professional installation and commissioning services.
- We provide remote and on-site technical support.
- We provide troubleshooting services and respond to customer
inquiries.
- We provide preventive maintenance services to keep the machine
running smoothly.
- We provide spare parts supply and repair services.
- We provide training and technical guidance.
If you have any questions or need technical support for Roll
Forming Machine, please don't hesitate to contact us. We are here
to help you.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
