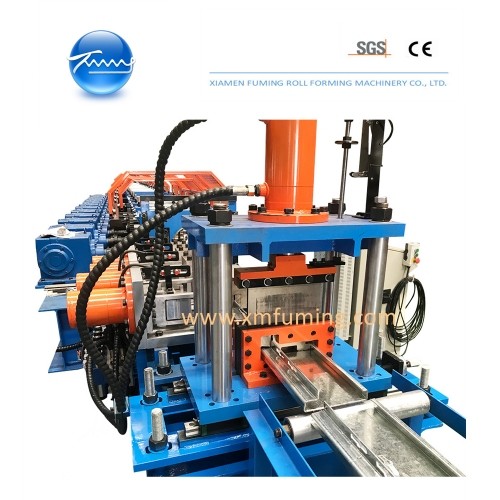

Product Description:
This container house roll forming machine is designed for the
production of container bottom frame beam. It features an Omron
encoder for precise positioning control, hydraulic cutting for
efficient cutting, PLC control system for high tolerance control.
The forming speed can reach up to 20m/min with stable and reliable
performance.
Features:
- Product Name: Container Bottom Frame Beam Roll Forming Machine
- Control System: PLC
- Forming Speed: 20m/min
- Cutting Tolerance: ±1mm
- Cutting Mode: Hydraulic Cutting
- Roller Material: Cr12, heat treatment, HRC58~62
Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR CONTAINER BOTTOM FRAME BEAM |
|
| Material Specification |
| Thickness | 4.0mm |
| Material | GI |
| Yield strength | 250MPa |
| Sizes | 150*45*74,180*45*74,250*45*74,210*45*74 |
|
| Machine Components |
| 7Ton*650mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 4KW motor |
| Expanding type | Link connect expanding system |
| Load capacity | Max.7Tons |
| Coil Inner-diameter | 510±30mm |
| Coil width | Max.650mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
|
| Pre-leveling and Feed-in Device |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set,
Manual control |
|
| Roll Forming Machine |
| Driving system | Gear box |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ95mm |
| Servo motor to drive | 37KW |
| Size changing | Spacer size changing manually |
| Line speed of rollformer | Approx. 20m/min or customized |
|
| Hydraulic Post Punching & Cutting Device |
| Punching & Cutting | Stop to punch, stop to cut |
| Cutting type | No blanking cut |
| Quntity of hydraulic punching cylinder | Three sets |
| Quntity of punching mould | Six sets |
| Quntity of hydraulic cutting cylinder | One set |
| Quntity of cutting mould | Four sets for four sizes |
| Punching & Cutting moulds material | Cr12Mov, heat treatment |
| Hydraulci pump motor | 15KW |
|
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1mm |
| Control Voltage | 24V |
|
| Product Rack | 6 meters×1 |
Applications:
XIAMEN FUMING's Container House Roll Forming Machine is widely used
in the production of container vertical post, container roof,
container roof beam, container bottom beam, container bottom frame
beam, container bottom frame purlin, container corner plate,
container roof gutter, etc.
Support and Services:
Technical Support and Service for Roll Forming Machine
We provide comprehensive technical support and service for Roll
Forming Machine. Our team of experienced engineers and technicians
can help you achieve optimal usage of the machine and maximize its
performance.
- We provide professional installation and commissioning services.
- We provide remote and on-site technical support.
- We provide troubleshooting services and respond to customer
inquiries.
- We provide preventive maintenance services to keep the machine
running smoothly.
- We provide spare parts supply and repair services.
- We provide training and technical guidance.
If you have any questions or need technical support for Roll
Forming Machine, please don't hesitate to contact us. We are here
to help you.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
