Product Description:
This container top beam roll forming machine is designed for the
production of container top beam. It features an Omron encoder for
precise positioning control, hydraulic cutting for efficient
cutting, PLC control system for high tolerance control. The forming
speed can reach up to 15m/min with stable and reliable performance.
Features:
- Product Name: Container Top Beam Roll Forming Machine
- Control System: PLC
- Forming Speed: 15m/min
- Cutting Tolerance: ±1mm
- Cutting Mode: Hydraulic Cutting
- Roller Material: GCr15, heat treatment, HRC58~62

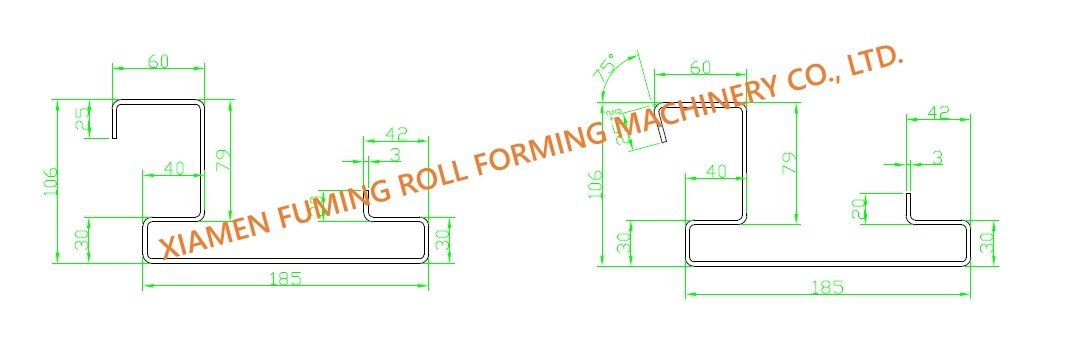

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR CONTAINER TOP BEAM CONTAINER HOUSE MACHINE |
|
| Material Specification |
| Thickness | 2.5mm~3.0mm |
| Material | GI |
| Yield strength | 250MPa |
| Width | 59 to 99 width adjustable |
|
| Machine Components |
| Pre-leveling and Feed-in Device |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set,
Manual control |
| Feed-in Roller | 45# steel, Φ118mm |
| Pre-leveling shafts | 40Cr steel, Φ95mm |
|
| Roll Forming Machine |
| Driving system | Gear/Sprocket driving |
| Wall plate thickness | 25mm |
| Roller material | GCr15, heat treatment, HRC58~62 |
| Forming stations | 26 stations |
| Shafts diameter | Φ80mm/Φ90mm |
| Servo motor | 22KW×2 |
| Line speed of rollformer | Approx. 15/min |
|
| Hydraulic Post Punching & Cutting Device |
| Punching & Cutting | Stop to punch, stop to cut |
| Punching rectangle hole | 400mm×100mm |
| Cutting type | Slug breaker |
| Quantity of punching moulds | One set |
| Quantity of cutting moulds | One set |
| Punching & Cutting tool material | Cr12Mov, heat treatment |
| Hydraulci pump motor | 18.5KW |
|
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1mm |
| Control Voltage | 24V |
|
| Product Rack | 3 meters×2 |
Applications:
XIAMEN FUMING's Container House Roll Forming Machine is widely used
in the production of container top beam, container vertical post,
container roof, container roof beam, container bottom beam,
container bottom frame beam, container bottom frame purlin,
container corner plate, container roof gutter, etc.
Support and Services:
Technical Support and Service for Roll Forming Machine
We provide comprehensive technical support and service for Roll
Forming Machine. Our team of experienced engineers and technicians
can help you achieve optimal usage of the machine and maximize its
performance.
- We provide professional installation and commissioning services.
- We provide remote and on-site technical support.
- We provide troubleshooting services and respond to customer
inquiries.
- We provide preventive maintenance services to keep the machine
running smoothly.
- We provide spare parts supply and repair services.
- We provide training and technical guidance.
If you have any questions or need technical support for Roll
Forming Machine, please don't hesitate to contact us. We are here
to help you.
