Product Description:
Custom Roll Forming Machine is a versatile and efficient roll
forming solution for manufacturing custom-made steel products. This
roll forming machine utilizes high-hardness rollers and shafts to
guarantee high accuracy and strength of the formed products. It
provides a cost-effective and reliable custom roll forming solution
for various industries, such as automotive, construction, and
furniture manufacturing. It is designed and fabricated to meet the
customer's specific needs and requirements. Its adjustable rollers
enable it to be tailored to the customer's product design and
production capacity. All custom roll forming machines are finely
tuned to ensure consistent product quality and maximum efficiency.
Custom Roll Forming Machine can be used to produce high-precision
steel products with complex shapes and sizes.
Drawing:
Features:

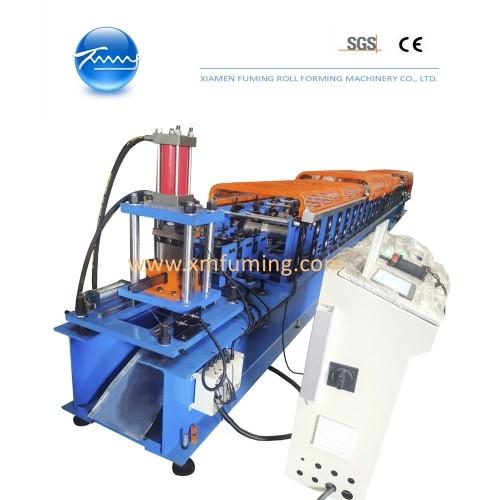

- Product Name: Roll Forming Machine for C23×41 Profile
- Roller Material: GCr15, heat treatment, hard chorme coated
- Roller Shaft: Φ75mm
- Forming Accuracy: ≤±2 mm
- Speed: 15m/min
- Features: Customized Roll Forming Machine to make different shapes
Technical Parameters:
| ROLL FORMING MACHINE FOR C23×41PROFILE |
|
| Material Specification |
| Thickness | 3.0mm |
| Material | GI |
| Yield strength | 250MPa |
|
|
| Machine Components |
| 1.5Ton*300mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 2.2KW pump motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.1.5Tons |
| Coil inner-diameter | 400-580mm |
| Coil outer-diameter | Max.1600mm |
| Coil width | Max.300mm |
|
| Feed-in and Pre-leveling Device |
| Feed-in Rollers |
| Pre-Level Device with 3 over 2 shafts to remove the Coil-set,
Manual control |
| |
| Hydraulic Pre-notching and Pre-punching Device |
| Quantity of hydraulic cylinders | Two sets |
| Notching and punching mould material | Cr12, heat treatment |
| |
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 22 stages to form |
| Roller material | GCr15, heat treatment, hard chorme coated |
| Shafts Diameter | Φ75mm |
| Main motor | 15KW×2, frequency speed control |
| Line speed of roll former | 15m/min |
|
| Hydraulic Post Cutting Device |
| Cutting type | Slug breaker |
| Cutter material | Cr12, heat treatment |
| Hydraulic station | 7.5KW |
|
| PLC Control System |
| Function | Control quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm or customized |
| Control Voltage | 24V |
|
| Product Rack | un-powered, 3 meters |
