Product Description:
Cable Tray Roll Forming Machine is a professional roll forming equipment for producing cable trays
or cable channels. It features 22 roller stations, 15m/min line
speed, ±2mm cutting tolerance and PLC control system, which
guarantee high production efficiency and precision. This machine is
highly suitable for producing various shapes of cable trays and
cable channels. It is the ideal choice for customers who are in
need of high quality cable tray and cable channel production.
Features:
- Product Name: Cable Tray Roll Forming Machine
- Cutting Tolerance: ±2mm
- Power: 22KW
- Roller Stations: 22 Stations
- Material: GI
- Thickness of Material: 1.0-2.5mm
- Special Features: Cable Channel, Cable Tray, Cable Rack

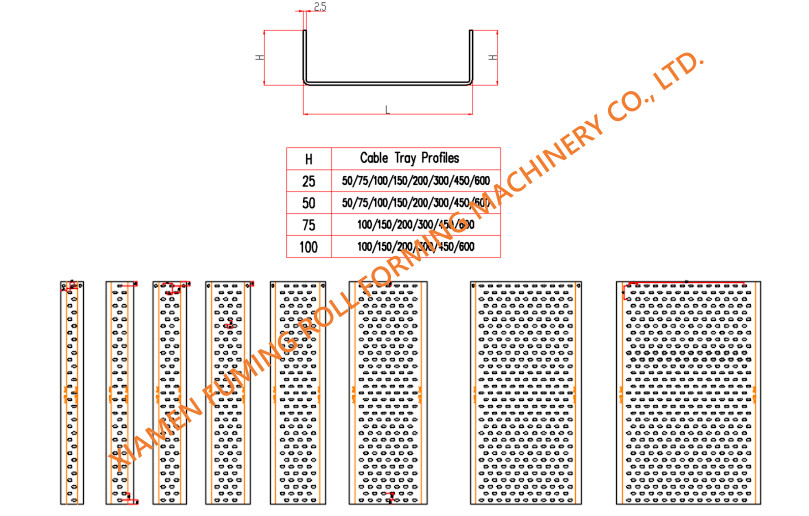

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR CABLE TRAY PROFILE |
|
| Material Specification |
| Thickness | 1.0mm to 2.5mm |
| Material | GI |
| Yield strength | 250MPa or customized |
|
| Machine Components |
| 5Ton*1250mm Hydraulic Decoiler and Pre-Leveling Device |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Driving motor | 7.5KW, with frequency inverter |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set,
Manual control | |
|
| 80 Tons Press with Servo Feeder |
| Feeder | 3.0KW servo motor to drive |
| Stroke | 45m/min |
| Punching mold | One set, with different mold cores to get different quantity of
holes punched |
| Mateiral of punching mold | Cr12Mov, heat treatment |
| Holes patten | As the drawing shown |
|
| Feed-in and Pre-leveling Device | |
| Two rollers for feeding in |
| Pre-Leveling Device with 3 over 2 shafts to remove the Coil-set,
Manual control |
| |
| Hydraulic Pre-shearing Device and Pre-punching Device |
| Hydraulic pre-shearing device, cut to length control,to cut off the
end of the final piece of sheet only |
| Punching and notching mould | One set, to punch flange holes and flange notch |
Share the same hydraulic station with pre-punching and pre-notching
device
The following picture is for your reference |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 22 stations |
| Roller material | Cr12, heat treatment |
| Shaft | Φ75mm, 45# steel, sliding parts with hard chrome coated |
| Main motor | 22KW, frequency speed control |
| Size changing | 1.1KW+0.75KW×2 |
| Line speed of rollformer | Approx. 15m/min or customized |
|
| Hydraulic Multi-size Cutting Device |
| Pneumatic pin to locate, cutting off while the programmed length is
reached, stop to cut |
| Cutting device is movable on the linear rail |
| Cutting type | Slug breaker |
| Cuttting tool | Including one set of cutting blades for all sizes |
| Cutting tool material | Cr12, Heat treatment |
| Hydraulic station | 11KW |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2.0 mm |
| Control Voltage | 24V |
|
| Product Rack | 3 meters×2 |
Applications:
XIAMEN FUMING Cable Tray Roll Forming Machine is widely used in cable channel industry for its superior
performance. This machine is equipped with PLC control system, 22
stations rollers, Cr12 roller material and hydraulic cutting
method. With its advanced technology, it can form 1.0-2.5mm
thickness cable channel with high precision. It is also well known
for its high quality and reliability.
Support and Services:
Technical Support and Service for Cable Tray Roll Forming Machine
We provide comprehensive technical support and service for Cable
Tray Roll Forming Machine. Our team of experienced engineers and
technicians can help you achieve optimal usage of the machine and
maximize its performance.
- We provide professional installation and commissioning services.
- We provide remote and on-site technical support.
- We provide troubleshooting services and respond to customer
inquiries.
- We provide preventive maintenance services to keep the machine
running smoothly.
- We provide spare parts supply and repair services.
- We provide training and technical guidance.
If you have any questions or need technical support for Cable Tray
Roll Forming Machine, please don't hesitate to contact us. We are
here to help you.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
