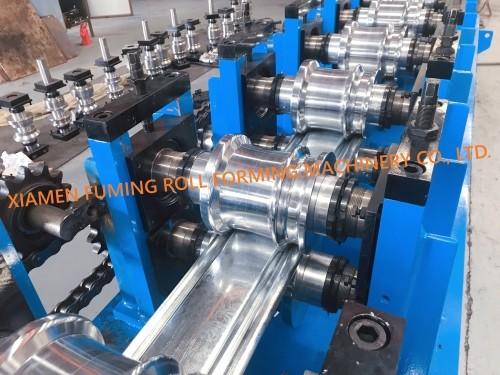

GI Roller Shutter Door Roll Forming Machine Precision Industrial

Ask Lasest Price
Brand Name :	XIAMEN FUMING
Model Number :	YX127.6
Price :	Negotiable
Payment Terms :	T/T, L/C
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

GI Roller Shutter Door Roll Forming Machine Precision Industrial

Shutter Door Vane Roll Forming Machine for YX127.6 Profile

Product Description:

With easy-to-operate technology, this precision shutter door vane roll forming machine can make shutter door vane with a cutting tolerance of ±2mm and speed up to 15m/min, making it the good choice for mass production. The machine is also equipped with PLC control system, providing greater accuracy and stability while producing the shutter door vane.

Features:

Product Name: Shutter Door Vane Roll Forming Machine
Material Thickness: 0.8mm-1.0mm
Cutting Tolerance: ±2mm
Cutting Method: Hydraulic Cutting
Control System: PLC Control
Special Feature: Shutter Door Vane Roll Forming Machine for YX127.6 Profile

Drawing:

Technical Parameters:

ROLL FORMING MACHINE FOR SHUTTER DOOR VANE
ROLL FORMING MACHINE FOR SHUTTER DOOR VANE
Material Specification
Thickness	0.8mm to 1.0mm
Feeding width	Approx.181mm
Material	GI
Yield strength	250MPa or customized

Machine Components
1.5Ton*300mm Simple Decoiler
Load capacity	Max.1.5Tons
Coil inner-diameter	400-580mm
Coil outer-diameter	Max.1600mm
Coil width	Max.300mm
Option	Please refer to decoiler on home page

Roll Forming Machine
Driving system	Gear/sprocket
Forming station	16 stations
5 rollers shaping device	1 unit
Roller material	45# steel, hard chorme coated
Shafts Diameter	Φ75mm
Main motor	7.5KW, frequency speed control
Line speed of rollformer	Approx. 15m/min or customized

Cooling System
Circulation of cooling water	By water pump
Injecting nozzle	Above the rollers
Water collecting	By quadrate flume fixed on the base-frame
Bringing back the cooling fluid	By blowing pipe cauda
Daily clean	Special design for tank

Hydraulic Cutting Device
Cutting type	Slug breaker
Cutting tool material	Cr12, heat treatment
Hydraulci pump motor	7.5KW

PLC Control System
Function	Control quantity and cutting length automatically
PLC	Siemens
Touch screen	Siemens
Inverter	Schneider or Delta
Encoder	Omron
Cut-to-length tolerance	≤±2 mm or customized
Control Voltage	24V

Product Rack	Un-powered, 4 meters

Applications:

Xiamen Fuming's Shutter Door Vane Roll Forming Machine is a perfect choice for clients who are looking for a reliable and cost effective solution for making shutter door vane profiles. It is suitable for material thickness of 0.8mm-1.0mm and has a driving motor power of 7.5KW. It is designed to produce high-quality door frames with exceptional accuracy and consistency. It is highly efficient and provides excellent production performance.

Support and Services:

Technical Support and Service for Roll Forming Machine

We provide comprehensive technical support and service for Roll Forming Machine. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.

We provide professional installation and commissioning services.
We provide remote and on-site technical support.
We provide troubleshooting services and respond to customer inquiries.
We provide preventive maintenance services to keep the machine running smoothly.
We provide spare parts supply and repair services.
We provide training and technical guidance.

If you have any questions or need technical support for Roll Forming Machine, please don't hesitate to contact us. We are here to help you.

FAQ:

Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?

A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.

XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.

Our roll forming machine is guaranteed for one year in correct operation and maintenance.

Q 2: How does the customer install the machine when it arrives?

A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.

Q 3: Does XIAMEN FUMING provide customized roll forming machines?

A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
