    GI Custom Roll Forming Machine 5.5KW Recoiling Line And Perforation Line

    Perforation & Recoiling Line for Upright Profile

    Product Description:

    This perforation and recoiling line is designed to punch the holes for the stips, then get the punched strips recoiled. The recoiled strips are prepared for forming upright profiles by roll forming machine.

    Features:

    • Material: GI
    • Thickness: 1.5mm to 2.0mm
    • Press capacity: 100 Tons press
    • Recoiler motor: 5.5KW
    • PLC control system

    Technical Parameters:

    PERFORATION & RECOILING LINE FOR UPRIGHT PROFILE
    Material Specification
    Thickness1.5mm to 2.0mm or customized
    SizeCustomized
    MaterialGI, cold rolled steel
    Yield strength550MPa or customized
    Machine Components
    3Ton*350mm Hydraulic Decoiler With Pre-leveler and Power Feed-in Device
    Load capacityMax.3Tons
    Coil inner-diameter510±30mm
    Coil outer-diameter1500mm
    Coil widthMax.350mm
    Motor2.2KW
    OptionPlease refer to Decoiler on home page
    Power Feed-in Rollers

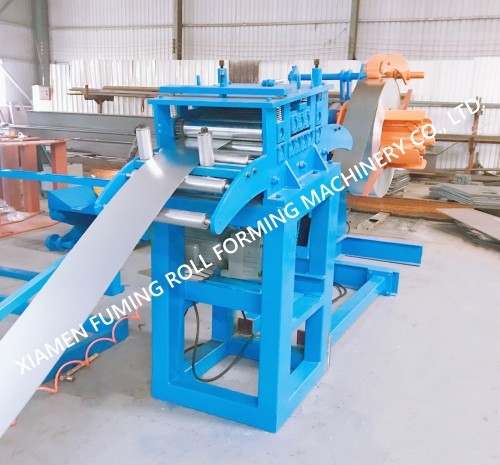

    Pre-Level Device with 3 over 4 shafts to remove the Coil-set
    Power5.5KW
    100 Tons Press
    Servo motor feed-in device3KW
    Quantity of pressing tools2 sets
    Mateiral of pressing toolCr12Mov, heat treatment
    Stroke45 times/min
    Holes pattenCustomized
    Tensioner Device
    3Ton*350mm Hydraulic Recoiler
    Coil inner hole expandingHydraulic system, 2.2KW pump motor
    Driving motor with brake5.5KW
    Expanding typeTaper wedge expanding system
    Load capacityMax.3Tons
    Coil inner-diameter510±30mm
    Coil outer-diameter1500mm
    Coil widthMax.350mm
    Up/down stroke of coil carMax300mm
    Forward/Backward stroke of coil carMax. 1000mm
    Stop/start rotationAutomatic stopping device with limited switch to assist
    PLC Control System
    FunctionControl the perforation automatically
    PLCSiemens
    Touch screenSiemens
    InverterSchneider or Delta
    EncoderOmron
    Punching tolerance≤±1 mm
    Control Voltage24V

    GI Custom Roll Forming Machine 5.5KW Recoiling Line And Perforation LineGI Custom Roll Forming Machine 5.5KW Recoiling Line And Perforation LineGI Custom Roll Forming Machine 5.5KW Recoiling Line And Perforation Line

    Support and Services:

    Technical Support and Service for Our Machines

    We provide comprehensive technical support and service for our machines. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.

    • We provide professional installation and commissioning services.
    • We provide remote and on-site technical support.
    • We provide troubleshooting services and respond to customer inquiries.
    • We provide preventive maintenance services to keep the machine running smoothly.
    • We provide spare parts supply and repair services.
    • We provide training and technical guidance.

    If you have any questions or need technical support for our machines, please don't hesitate to contact us. We are here to help you.

    FAQ:

    Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?

    A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.

    XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.

    Our roll forming machine is guaranteed for one year in correct operation and maintenance.


    Q 2: How does the customer install the machine when it arrives?

    A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.


    Q 3: Does XIAMEN FUMING provide customized roll forming machines?

    A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
