Product Description:
The floor decking roll forming machine is designed to meet
different thickness requirements. It is capable of forming sheets
with thickness range from 0.8mm to 1.2mm. With cutting tolerance of
±2mm, it ensures high accuracy of the product. The PLC control system is easy to operate and can guarantee
production stability.
Features:
- Decking Profile: Floor Decking Roll Forming Machine
- Thickness: 0.8-1.2mm
- Cutting Tolerance: ±2mm
- Forming Speed: 18m/min
- Cutting Length: Adjustable
- Warranty: 1 Year

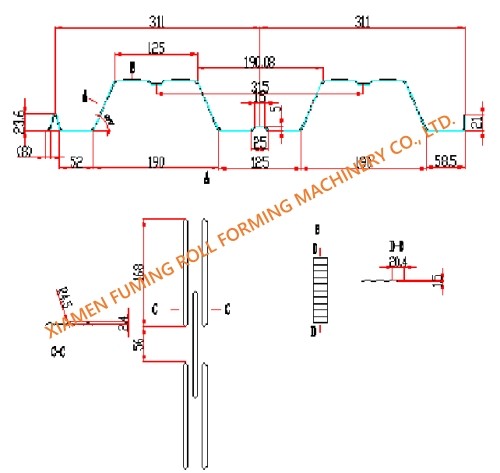

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR YX70-311-622 DECKING PROFILE |
|
| Material Specification |
| Thickness | 0.8mm to 1.2mm |
| Effective width | 622mm |
| Feeding width | Approx.865mm |
| Material | GI |
| Yield strength | 235MPa |
|
| Machine Components |
| 5Ton*1250mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max. 1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 18 stations |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Shafts Diameter | Φ95mm |
| Main motor | 11KW×2 |
| Line speed of rollformer | Approx. 18m/min or customized |
|
| Hydraulic Cutting Device |
| Cutting type | Slug Breaker |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 5.5KW |
|
| PLC Control System |
| Function | Control the quantity & cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
|
| Product Rack | Un-powered, three units |
Applications:
XIAMEN FUMING's Floor Decking Roll Forming Machine, Model Number
YX70-311-622, is designed for making decking profiles with
excellent quality. The thickness of the decking sheet can be
adjusted from 0.8mm to 1.2mm. The cutting length is adjustable and
cutting tolerance can be up to ±2mm, which offers high precision.
The PLC system ensures the productivity and stability of the
machine. With this Floor Decking Roll Forming Machine, users can
start massive production for decking sheets.
Support and Services:
We provide technical support and service for Roll Forming Machine.
Our professional team is available 24/7 to provide you with prompt
and reliable support. Our technical support services include:
- Remote technical support
- On-site maintenance and repair services
- Training and consultation to ensure optimal operation
- Warranty service
We are committed to providing you with the highest level of
technical support and service. If you have any questions or
concerns, please do not hesitate to contact us.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
