Product Description:
The Roof Panel Roll Forming Machine is designed to meet the high
performance requirements. It adopts the PLC control system,
transmission with gear/sprocket, and has a high precision cutting
length. This Roof Panel Forming Machine is ideal for producing roof
panels with high accuracy, high efficiency and stable performance.
With a wide range of applications, it is an ideal choice for roof
panel forming operation. Its advanced technology ensures a
reliable, efficient and safe operation in various environments.
Features:
- Product Name: Roof Panel Roll Forming Machine for YX29.5-285.5-1142 Roof Profile
- Roller Station: 20 Stations
- Material: Aluzinc
- Transmission: Gear/sprocket
- Forming Speed: 20m/min
- Drive Type: Motor Driving
- Roof Panel/Roofing Sheet Roll Forming Machine

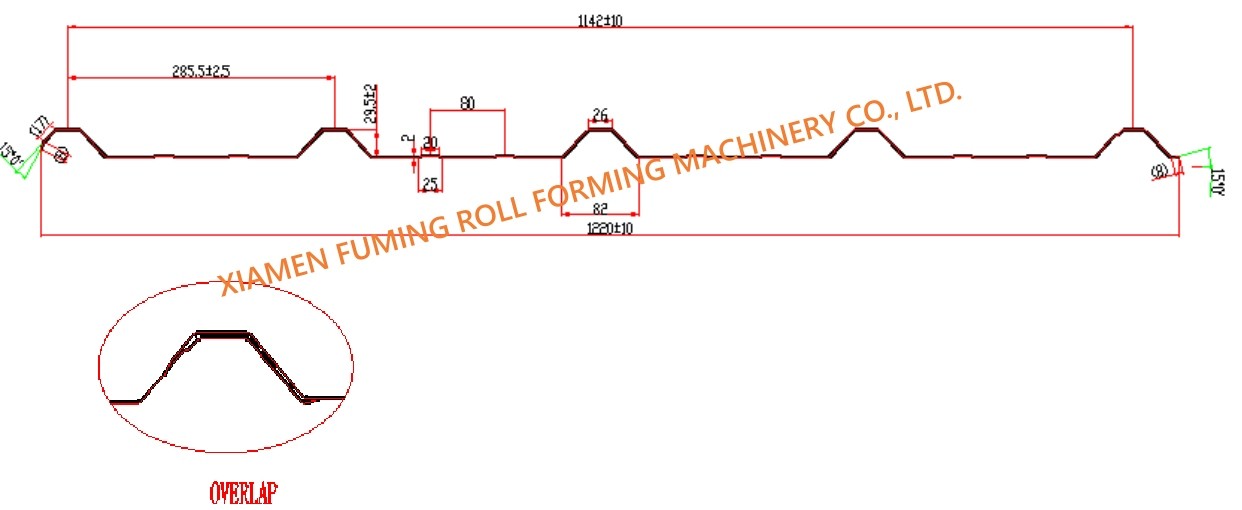

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR YX29.5-285.5-1142 ROOF PROFILE |
|
|
| Material Specification |
| Thickness | 0.35mm to 0.8mm |
| Effective width | 1142+/-10mm |
| Feeding width | Approx.1335mm |
| Material | Aluzinc |
| Yield strength | 235-550MPa |
|
| Machine Components |
| 5Ton*1250mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
|
| Entry Rollers and Manual Pre-shearing Device |
| Working thickness | Up to 0.8mm |
| Function | Smart cut control, to cut off the end of the final piece of sheet
only |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Polythene Film-On Device | Un-powered, with un-coil-rollers at double sides, with rubber shaft
to film-on the film |
| Forming station | 20 stations |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Shafts Diameter | Φ95mm |
| Main motor | 15KW |
| Line speed of rollformer | Approx. 20m/min |
|
| Hydraulic Cutting Device |
| Cutting type | No Blanking cut |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 5KW |
|
| PLC Control System |
| Function | Control the quantity & cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm or customized |
| Control Voltage | 24V |
|
| Product Rack | Un-powered, three units |
Applications:
XIAMEN FUMING Roof Panel Roll Forming Machine, model number
YX29.5-285.5-1142, is a reliable and cost-effective equipment. The
voltage of the equipment can be customized.
Support and Services:
Roof Panel Roll Forming Machine Technical Support and Services
We provide comprehensive support for Roof Panel Roll Forming
Machines, including:
- Remote technical support
- On-site maintenance and repair services
- Training and consultation to ensure optimal operation
- Warranty service
Our team of experienced professionals will work with you to ensure
your Roof Panel Roll Forming Machine is running efficiently and
reliably.
If you have any questions or require support for your Roof Panel
Roll Forming Machine, please contact us.
