Product Description:

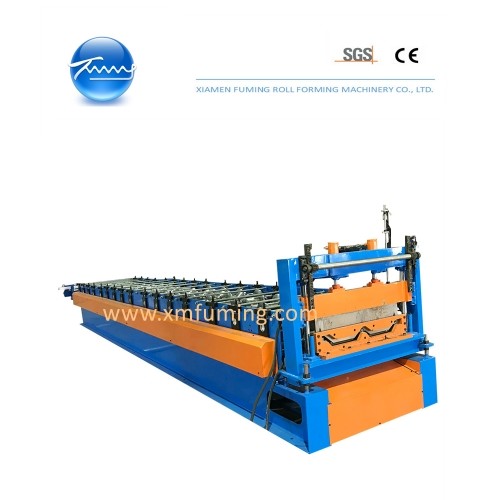

The Boltless Roof Roll Forming Machine is designed to meet the high
performance requirements. It adopts the PLC control system,
transmission with gear/sprocket, and has a high precision cutting
length. The Lock Seam Roll Forming Machine is ideal for producing
roof panels with high accuracy, high efficiency and stable
performance. With a wide range of applications, it is an ideal
choice for roof panel forming operation. Its advanced technology
ensures a reliable, efficient and safe operation in various
environments.
Features:
- Product Name: The Boltless Roof Roll Forming Machine for YX75-380-760 Profile
- Roller Station: 22 Stations
- Material: PPGI
- Transmission: Gear/sprocket
- Forming Speed: 20m/min
- Drive Type: Motor Driving
- The Boltless Roof Roll Forming Machine
Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR YX75-380-760 BOLTLESS ROOF |
|
| Material Specification |
| Thickness | 0.4mm to 0.8mm |
| Effective width | 760mm |
| Feeding width | Approx.1000mm |
| Material | PPGI, GI |
| Yield strength | 550MPa |
|
| Machine Components |
| 5Ton*1250mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
|
| Entry Bench and Manual Pre-shearing device |
| Working thickness | Up to 0.8mm |
| Function | Smart cut control, to cut off the end of the final piece of sheet
only |
| Option | Hydraulic pre-shearing device |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 22 stations |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Shafts Diameter | Φ75/Φ95mm |
| Main motor | 11KW, frequency speed control |
| Line speed of rollformer | Approx. 20m/min |
|
| Hydraulic Cutting Device |
| Cutting type | Slug breaker |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 4KW |
|
| PLC Control System |
| Function | Control quantity and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
|
| Product Rack | Un-powered, three units |
|
| Electrical Seamer | 1 unit |
|
| Hand Seamer | 2 units |
Applications:
XIAMEN FUMING Boltless Roof Roll Forming Machine, model number
YX75-380-760, is a reliable and cost-effective equipment. The
voltage of the equipment can be customized.
Support and Services:
Boltless Roof Roll Forming Machine Technical Support and Services
We provide comprehensive support for Boltless Roof Roll Forming
Machines, including:
- Remote technical support
- On-site maintenance and repair services
- Training and consultation to ensure optimal operation
- Warranty service
Our team of experienced professionals will work with you to ensure
your Boltless Roof Roll Forming Machine is running efficiently and
reliably.
If you have any questions or require support for your Roll Forming
Machine, please contact us.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
