Product Description:
This roll forming machine is for making shelving profile, it
features a series of 24 stations with precisely machined rollers.
It is driven by an 11KW motor and it is suitable for forming
materials like galvanized steel with material thickness up to
1.2mm. The cutting length tolerance is within ±2mm.
Features:
- Product Name: Roll Forming Machine for Shelf Profile
- Cutting Length Tolerance: ±2mm
- Roller Material: 45# Steel, Hard Chrome Coated
- Material Type: Galvanized Steel
- Cutting System: Hydraulic Cutting

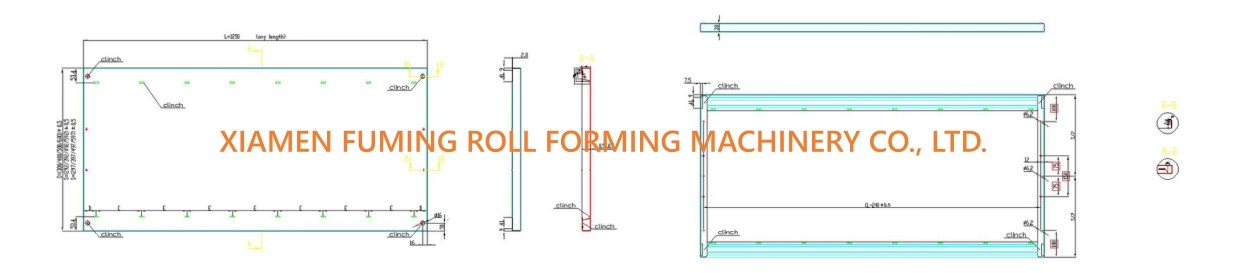

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR SHELF MACHINE |
|
| Material Specification |
| Thickness | 0.7mm |
| Material | GI |
| Yield strength | 250MPa |
| Length | 1250-1500mm |
|
| Machine Components |
| 5Ton*900mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.900mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
|
| Servo Feed-in, Pre-leveling, Pre-Notching & Pre-punching Device |
|
| Roll Forming Machine |
| Driving system | Gear/Sprocket driving |
| Roller material | 45# steel, hard chrome coated |
| Shafts Diameter | Φ75mm |
| Motor to drive | 11KW |
| Motor for size changing | 1.5KW |
| Line speed of rollformer | Approx. 15m/min or customized |
|
| Hydraulic Post Cutting Device |
|
| Powered Conveyor 1 |
| Length | 1.8 meters |
| Motor | 0.75KW |
|
| Rivet Punching Device |
|
| Powered Conveyor 2 |
| Length | 1.8 meters |
| Motor | 0.75KW |
|
| End Bending Device(First Cut A) |
| Hydraulic station | 3KW |
|
| Powered Conveyor 3 |
| Length | 1.8 meters |
| Motor | 0.75KW |
|
| End Bending Device(First Cut B) |
| Hydraulic station | 3KW |
|
| Powered Conveyor 4 |
| Length | 1.8 meters |
| Motor | 0.75KW |
|
| End Bending Device(Second Cut A) |
| Hydraulic station | 3KW |
|
| Powered Conveyor 5 |
| Length | 1.8 meters |
| Motor | 0.75KW |
|
| End Bending Device(Second Cut B) |
| Hydraulic station | 3KW |
|
| Powered Conveyor 6 |
| Length | 1.8 meters |
| Motor | 0.75KW |
|
| Rivet Pulling Device (Top End) |
| Hydraulic station | 3KW |
|
| Powered Conveyor 7 |
| Length | 1.8 meters |
| Motor | 0.75KW |
|
| Rivet Pulling Device (Bottom End) |
| Hydraulic station | 3KW |
|
| Powered Conveyor 8 |
| Length | 1.8 meters |
| Motor | 0.75KW |
|
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm |
| Control Voltage | 24V |
Applications:
The Racking System Roll Forming Machine from XIAMEN FUMING is designed to manufacture shelf and upright profiles for racking
systems from galvanized steel with a material thickness up to 1.2mm. This roll forming machine is equipped with a hydraulic cutting system, ensuring a precise cutting length tolerance of ±2mm. This roll
forming machine is suitable for metal sheet processing and is
widely used in storage system.
Support and Services:
We provide technical support and service for Racking System Roll
Forming Machine. Our professional team is available 24/7 to provide
you with prompt and reliable support. Our technical support
services include:
- Remote technical support
- On-site maintenance and repair services
- Training and consultation to ensure optimal operation
- Warranty service
We are committed to providing you with the highest level of
technical support and service. If you have any questions or
concerns, please do not hesitate to contact us.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
