Upright Roll Forming Machine for YX71-115/120/125/130/135 Profile,
Racking System, Storage System
Product Description:
This roll forming machine is for making shelving profile, it
features a series of 22 stations with precisely machined rollers.
It is driven by an 18.5KW motor and it is suitable for forming
materials like galvanized steel with material thickness up to 1.6mm to 2.5mm. The cutting length tolerance is within ±1mm.
Features:
- Product Name: Upright Roll Forming Machine for
YX71-115/120/125/30/135 Profile
- Cutting Length Tolerance: ±1mm
- Roller Material: Cr12, heat treatment
- Material Type: GI
- Cutting System: Hydraulic Cutting

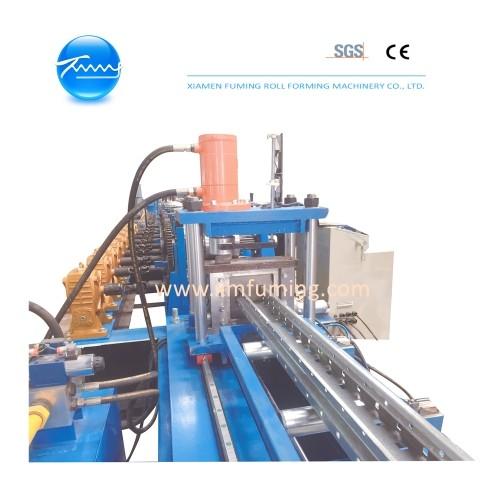

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR UPRIGHT PROFILE(SIZE CHANGING
AUTOMATICALLY) |
|
| Material Specification |
| Thickness | 1.6mm to 2.5mm or customized |
| Size | YX71-115/120/125/130/135 |
| Material | GI |
| Yield strength | G450 or customized |
|
| Machine Components |
| 5Ton*600mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil Inner-diameter | 510±30mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
|
| Pre-leveler and Power Feed-in Device |
| Power Feed-in Rollers | |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set | |
| Power | 5.5KW |
|
| 100 Tons Press |
| Servo motor feed-in device | 3KW |
| Quantity of pressing tools | 5 sets |
| Mateiral of pressing tool | Cr12Mov, heat treatment |
| Holes patten | Customized |
|
| Roll Forming Machine |
| Driving system | Toroidal worm box |
| Forming station | 22 stations |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Shafts Diameter | Φ75mm |
| Servo motor to drive | 18.5KW |
| Motor for size changing | 1.5KW |
| Production speed | Approx. 8m/min to 10m/min |
|
| Hydraulic Non-Stop Cutting device |
| Cutting type | Non-stop cut, no blanking cut |
| Unloading and cutting carriage reset | Driving by pneumatic cylinder |
| Quantity of cutting tools | 5 sets |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 11KW |
| Air souce supply | By user |
|
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1mm |
| Punching tolerance | ≤±1 mm |
| Control Voltage | 24V |
|
| Product Rack | Un-powered, 6 meters |
| Option | Pneumatic unloading rack |
Applications:
The Racking System Roll Forming Machine from XIAMEN FUMING is designed to manufacture shelf and upright profiles for racking
systems from galvanized steel with a material thickness up to 2.5mm. This roll forming machine is equipped with a hydraulic cutting system, ensuring a precise cutting length tolerance of ±1mm. This roll
forming machine is suitable for metal sheet processing and is
widely used in storage system.
Support and Services:
We provide technical support and service for Racking System Roll
Forming Machine. Our professional team is available 24/7 to provide
you with prompt and reliable support. Our technical support
services include:
- Remote technical support
- On-site maintenance and repair services
- Training and consultation to ensure optimal operation
- Warranty service
We are committed to providing you with the highest level of
technical support and service. If you have any questions or
concerns, please do not hesitate to contact us.
