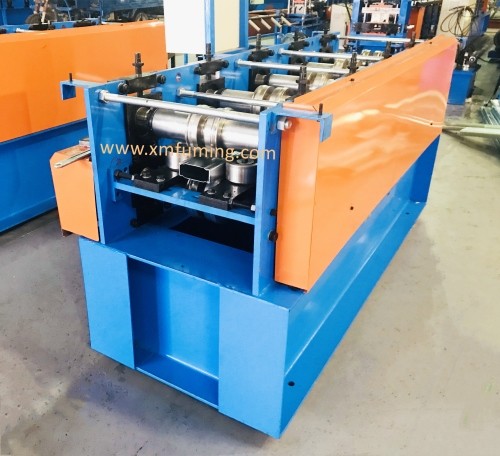

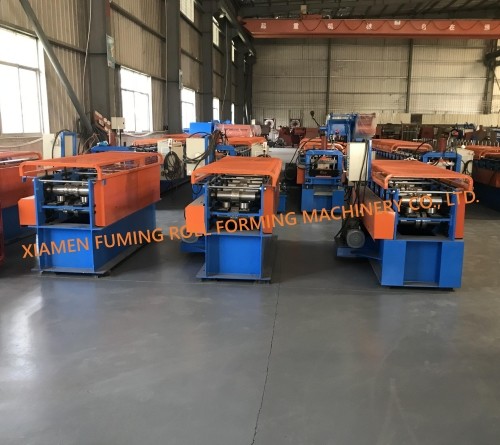

Box Beam Roll Forming Machine for YX50*108/125/145 Profile, Racking
System, Storage System
Product Description:
This roll forming machine is for making shelving profile, it
features a series of 16 stations with precisely machined rollers.
It is driven by an 15KW motor and it is suitable for forming
materials like galvanized steel with material thickness up to 2.0mm. The cutting length tolerance is within ±1mm.
Features:
- Product Name: Upright Roll Forming Machine for YX50*108/125/145
Profile
- Cutting Length Tolerance: ±2mm
- Roller Material: GCr15, heat treatment, hard chrome coated
- Material Type: GI
- Cutting System: Hydraulic Cutting
Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR 50*108/125/145 BOX BEAM PROFILE |
|
| Material Specification |
| Thickness | 1.5mm to 2.0mm |
| Size | 50*108/125/145 |
| Feeding width | 216mm/233mm/253mm |
| Material | GI, cold rolled steel |
| Yield strength | 300~550MPa |
|
| Machine Components |
| 5Ton*650mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil Inner-diameter | 510±30mm |
| Coil width | Max.650mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
|
| Pre-leveling Device |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set,
Manual control |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 16 stations |
| Roller material | GCr15, heat treatment, HRC58~62, hard chrome coated |
| Shafts Diameter | Φ75mm |
| Motor to drive | 15KW, frequency speed control |
| Size changing | By spacer |
| Line speed of rollformer | Approx. 18m/min or customized |
|
| Hydraulic Multi-size Cutting Device |
| Cutting type | Multi-size cutting, slug breaker |
| Cutting blade material | Cr12, heat treatment |
| Hydraulic pump motor | 5.5KW |
|
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
|
| Adjustable Interlock Device |
| Forming station | 5 stations |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Main motor | 3KW |
| Electrical control box | 1 unit |
Applications:
The Box Beam Roll Forming Machine from XIAMEN FUMING is designed to manufacture box beam profiles for racking systems
from galvanized steel with a material thickness up to 2.0mm. This roll forming machine is equipped with a hydraulic cutting system, ensuring a precise cutting length tolerance of ±2mm. This roll
forming machine is suitable for metal sheet processing and is
widely used in storage system.
Support and Services:
We provide technical support and service for Racking System Roll
Forming Machine. Our professional team is available 24/7 to provide
you with prompt and reliable support. Our technical support
services include:
- Remote technical support
- On-site maintenance and repair services
- Training and consultation to ensure optimal operation
- Warranty service
We are committed to providing you with the highest level of
technical support and service. If you have any questions or
concerns, please do not hesitate to contact us.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
