Product Description:

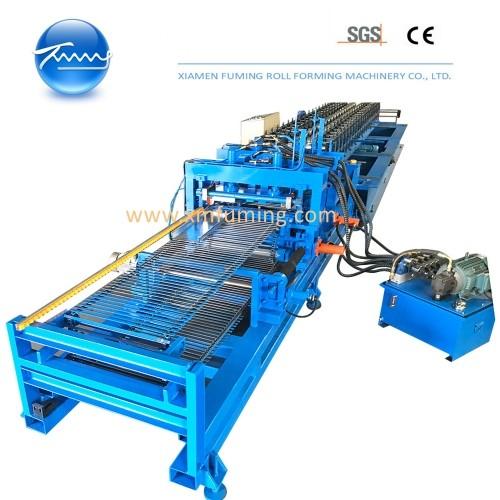

This roll forming machine is for making shelving profile, it
features a series of 20 stations with precisely machined rollers.
It is driven by an 7.5KW motor and it is suitable for forming
materials like galvanized steel with material thickness up to
1.0mm. The cutting length tolerance is within ±2mm.
Features:
- Product Name: Roll Forming Machine for Shelf Profile
- Cutting Length Tolerance: ±2mm
- Roller Material: 45# Steel, Hard Chrome Coated
- Material Type: Galvanized Steel
- Cutting System: Hydraulic Cutting
Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR SHELF PROFILE |
|
| Material Specification |
| Thickness | 0.6mm to 1.0mm |
| Size | 257mm to 800mm or customized |
| Material | GI, PPGI |
| Yield strength | 550MPa |
|
| Machine Components |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 20 stations |
| Roller material | 45# steel, hard chrome coated |
| Shafts Diameter | Φ75mm |
| Motor to drive | 7.5KW, frequency speed control |
| Motor for size changing | 1.5KW |
| Line speed of rollformer | Approx. 18m/min or customized |
| |
| Powered Conveyor 1 |
| Length | 2.5 meters |
| Motor | 1.5KW |
|
| Hydraulic Bending Device 1 |
| Function | For bending the tail of the profiled sheet |
| Positioning | By pneumatic pin |
| Hydraulic station | 7.5KW |
| |
| Powered Conveyor 2 |
| Alignment | Driving pneumatically |
| Length | Adjustable |
| Motor | Share the same motor with powered conveyor 1 |
|
| Hydraulic Bending Device 2 |
| Function | For bending the head of the profiled sheet |
| Positioning | By pneumatic pin |
| Motor for adjusting the location | 1.5KW |
| Bending | Two sides bending at the same time |
| Hydraulic station | Share with the same hydraulic station with bening device 1 |
| |
| Powered Conveyor 3 |
| Length | Adjustable |
| Motor | Share the same motor with powered conveyor 1 |
|
| PLC Control System |
| Function | Control size changing and bending automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
Applications:
The Racking System Roll Forming Machine from XIAMEN FUMING is designed to manufacture shelf and upright profiles for racking
systems from galvanized steel with a material thickness up to 1.0mm. This roll forming machine is equipped with a hydraulic cutting system, ensuring a precise cutting length tolerance of ±2mm. This roll
forming machine is suitable for metal sheet processing and is
widely used in storage system.
Support and Services:
We provide technical support and service for Racking System Roll
Forming Machine. Our professional team is available 24/7 to provide
you with prompt and reliable support. Our technical support
services include:
- Remote technical support
- On-site maintenance and repair services
- Training and consultation to ensure optimal operation
- Warranty service
We are committed to providing you with the highest level of
technical support and service. If you have any questions or
concerns, please do not hesitate to contact us.
