Product Description:
L Shape Roll Forming Machine is a kind of machine specially used in
producing L shape profile. It uses rollers to form the material
into pre-determined shapes. The forming speed of this machine is
20m/min, with cutting length tolerance of ±2mm, and the material
thickness can be adjusted up to 3.2mm. It is equipped with a PLC
control system and hydraulic cutting system, ensuring high accuracy
and reliability of the products.
Features:
- Product Name: L Shape Roll Forming Machine
- Control System: PLC
- Cutting Length Tolerance: ±2mm
- Roller Material: Cr12, Heat Treatment, HRC58~62
- Forming Speed: 20m/min
- Material Type: Galvanized Steel
- Special Design: Ideal for producing L Shape Profile

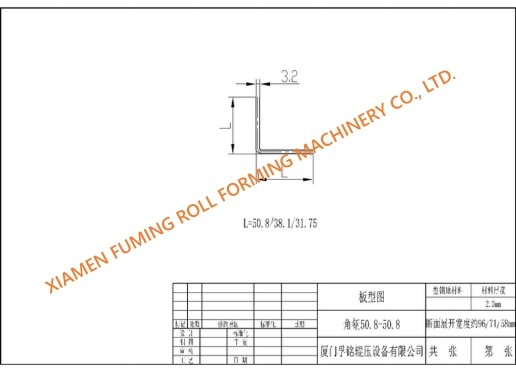

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR L ANGLE |
|
| Material Specification |
| Thickness | 3.2mm |
| Size | 96/71/58mm |
| Material | GI, Hot rolled steel |
| Yield strength | 250~400Mpa |
|
| Machine Components |
| 5Ton*600mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
|
| Pre-leveling Device |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set,
Manual control |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 8 stages |
| Shaping device | 5 rollers for shaping |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ75mm |
| Motor to drive | 11KW |
| Speed | Approx. 20m/min |
|
| Hydraulic Post Cutting Device |
| Cutting type | No blanking cut |
| Cutting tool material | Cr12, Heat treatment |
| Hydraulic station | 7.5KW |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm |
| Control Voltage | 24V |
|
| Product Rack | Un-powered, 3 meters long |
Applications:
XIAMEN FUMING's L Shape Roll Forming Machine is specially designed
and manufactured for L96/71/58 production. With galvanized steel as the material, this machine is
able to make the material thickness of 3.2mm. It is featured with
PLC control system, and the cutting length tolerance is ±2mm, which
ensures high precision. The price is negotiable and the machine is
shipped without outer packing, shipped by container.
