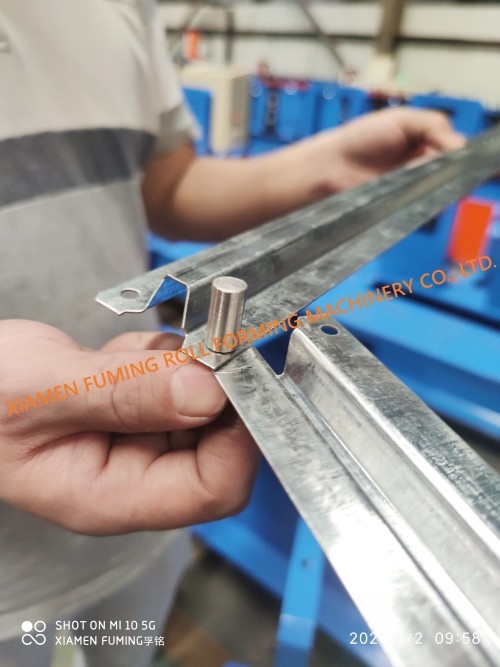

Product Description:
Z Cross Bar Roll Forming Machine is a kind of machine specially
used in producing H50 profile. It uses rollers to form the material
into pre-determined shapes. The forming speed of this machine is 12600 pieces per day , with cutting length tolerance of ±1mm, and the material
thickness can be adjusted up to 1.0mm. It is equipped with a PLC
control system and hydraulic cutting system, ensuring high accuracy
and reliability of the products.
Features:
- Product Name: Z Cross Bar Roll Forming Machine
- Control System: PLC
- Cutting Length Tolerance: ±1mm
- Roller Material: Cr12, Heat Treatment, HRC58~62
- Forming Speed: 12600 pieces per day
- Material Type: Galvanized Steel
- Special Design: Ideal for producing Z Cross Bar

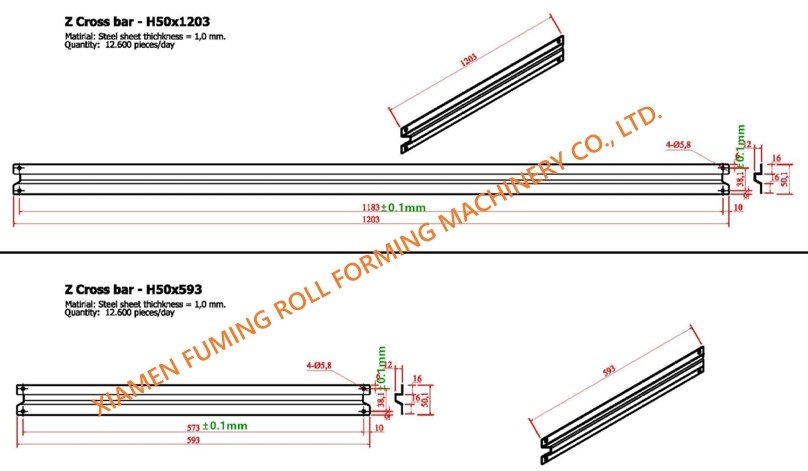

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR Z CROSS BAR H50 PROFILE |
|
| Material Specification |
| Thickness | 1.0mm |
| Yield strength | 250MPa |
|
| Machine Components |
| 1.5Ton*300mm Simple Decoiler |
| Load capacity | Max.1.5Tons |
| Coil inner-diameter | 510±30mm |
| Coil outer-diameter | Max.1200mm |
| Coil width | Max.300mm |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 10 stages |
| Roller material | 45# steel, hard chorme coated |
| Shafts Diameter | Φ60mm |
| Servo motor to drive | 4KW |
| Production speed | 12600 pieces per day (16 hours, two shifts) |
|
| Non-Stop Hydraulic Post Punching & Post Cutting Device |
| 1st hydraulic cylinder | To punch |
| 2nd hydraulic cylinder | To punch and cut |
| Cutting type | Slug breaker |
| Punching mould material | Cr12, Heat treatment |
| Cutting mould material | Cr12, Heat treatment |
| Hydraulic station | 4KW |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1 mm |
| Control Voltage | 24V |
|
| Product Rack | Un-powered, 3 meters long |
Applications:
XIAMEN FUMING's Z Cross Bar Roll Forming Machine is specially
designed and manufactured for H50 production. With galvanized steel as the material, this machine is
able to make the material thickness of 1.0mm. It is featured with
PLC control system, and the cutting length tolerance is ±1mm, which
ensures high precision. The price is negotiable and the machine is
shipped without outer packing, shipped by container.
Support and Services:
We provide technical support and service for Roll Forming Machine,
including:
- 24/7 online technical support
- Installation instructions and user manual
- Troubleshooting guide
- On-site maintenance and repair
- Spare parts and replacement
- Warranty service
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
