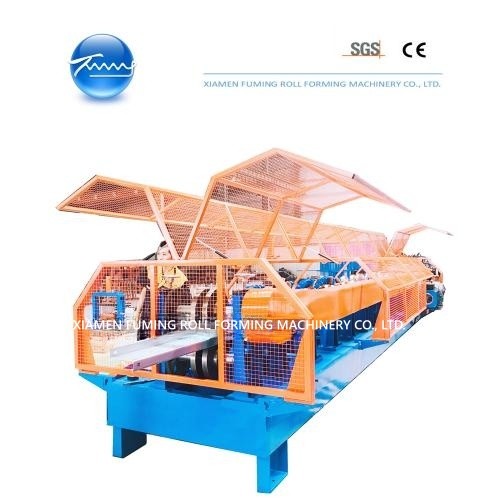

Product Description:
Purlin Roll Forming Machine is designed to produce high-quality CZ
purlin with precise cutting tolerance of ≤±2 mm. This roll forming
machine is equipped with a PLC control system, 15 roller stations,
and servo motor power system. It is capable of processing material
thickness of 1.5mm to 3.5mm, and comes with a hydraulic cutting system for high efficiency.
Features:
- Product Name: Purlin Roll Forming Machine
- Cutting Length Accuracy: ±1mm
- Roller Stations: 15 Stations
- Material Thickness: 1.5-3.5mm
- Control System: PLC
- Hydraulic Cutting
- CZ Purlin

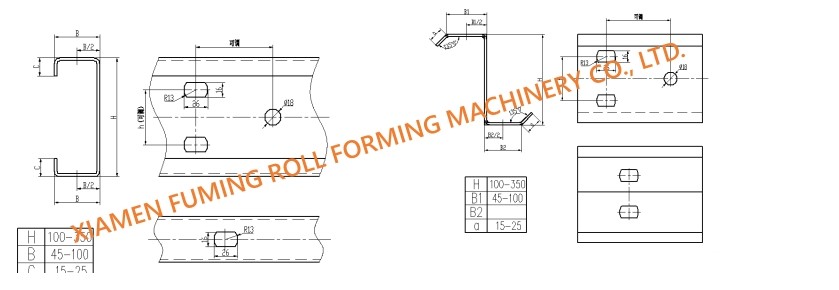

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR AUTO CZ PURLIN |
|
| Material Specification |
| Thickness | 1.5mm to 3.5mm |
| Web | C100-C350, Z100-Z350 |
| Flange | 45mm to 100mm |
| Lip | 15mm to 25mm |
| Material | Hot rolled steel, Cold rolled steel |
| Yield strength | 245MPa to 350MPa |
|
| Machine Components |
| 5Ton*650mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 4KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil Inner-diameter | 510±30mm |
| Coil outer-diameter | 1500mm |
| Coil width | Max.650mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
|
| Feed-in and Pre-leveling Device |
| Feed-in device |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set,
Manual control |
|
| Hydraulic Pre-shearing device and Pre-punching device |
| Function of pre-shearing devic | Cut to length control |
| Cutting blade material | Cr12, heat treatment |
| Hydraulic cylinder for cutting | 1 unit |
| Hydraulic cylinder for punching | 5 units |
| Punching tool material | Cr12, heat treatment |
| Hydraulic pump motor | 11KW |
|
| Roll Forming Machine |
| Driving system | Chain/Sprocket |
| Forming station | 15 stations |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Shafts Diameter | Φ90mm |
| Servo motor to drive | 36KW |
| Motor for size changing | 1.5KW×1+0.75KW×2 |
| Line speed of rollformer | Approx. 25m/min |
|
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1mm |
| Control Voltage | 24V |
|
| Product Rack | 6 meters×1 |
Applications:
The Purlin Roll Forming Machine from XIAMEN FUMING is a powerful and versatile production line that is designed to
produce CZ Purlin in large quantities. This product features 15 Stations for forming the purlins. With its advanced technology, this
machine is able to produce high quality and durable purlins in a
short time. It is also cost effective and efficient, and can be
used in various industrial applications. The Purlin Roll Forming
Machine from XIAMEN FUMING is perfect for companies looking for a
reliable and efficient way to produce purlin in large quantities.
