Product Description:

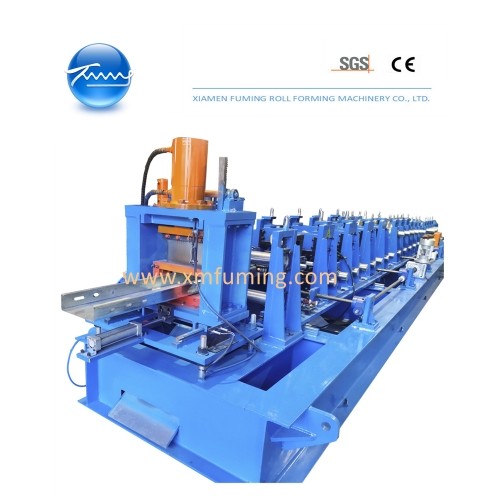

Purlin Roll Forming Machine is designed to produce high-quality C
purlin with precise cutting tolerance of ≤±1 mm. This roll forming
machine is equipped with a PLC control system, 16 roller stations,
and servo motor power system. It is capable of processing material
thickness of 2.0mm to 4.0mm, and comes with a hydraulic cutting system for high efficiency.
Features:
- Product Name: Purlin Roll Forming Machine
- Cutting Length Accuracy: ±1mm
- Roller Stations: 16 Stations
- Material Thickness: 2.0-4.0mm
- Control System: PLC
- Hydraulic Cutting
- C80~300
Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR AUTO C PURLIN |
|
| Material Specification |
| Thickness | 2.0mm to 4.0mm |
| Size | C80-C300 |
| Flange | 35mm~110mm or customized |
| Lip | 10mm~35mm or customized |
| Material | GI, cold rolled steel |
| Yield strength | 345MPa |
|
| Machine Components |
| 5Ton*600mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
|
|
| Hydraulic Pre-shearing device and Pre-punching device |
| Function of pre-shearing devic | Smart cut control, to cut off the end of the final piece of sheet
only |
| Cutting blade material | Cr12, heat treatment |
| Punching tool material | Cr12, heat treatment |
| Hydraulic pump motor | 15KW |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 16 stages |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ75mm/Φ85mm/Φ95mm |
| Servo motor to drive | 36KW |
| Motor for size changing | 1.5KW×1+0.75KW×2 |
| Line speed of rollformer | Approx. 25m/min or customized |
|
| Hydraulic Post Cutting Device |
| Cutting device is movable on the linear rail | |
| Cutting type | Slug breaker |
| Cutting tool material | Cr12, Heat treatment |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1 mm |
| Punching tolerance | ≤±1 mm |
| Control Voltage | 24V |
|
| Product Rack | 3 meters long×2 |
Applications:
The Purlin Roll Forming Machine from XIAMEN FUMING is a powerful and versatile production line that is designed to
produce C Purlin in large quantities. This product features 16 Stations for forming the purlins. With its advanced technology, this
machine is able to produce high quality and durable purlins in a
short time. It is also cost effective and efficient, and can be
used in various industrial applications. The Purlin Roll Forming
Machine from XIAMEN FUMING is perfect for companies looking for a
reliable and efficient way to produce purlin in large quantities.
Support and Services:
Technical Support and Service for Purlin Roll Forming Machine
We provide comprehensive technical support and service for Roll
Forming Machine. Our team of experienced engineers and technicians
can help you achieve optimal usage of the machine and maximize its
performance.
- We provide professional installation and commissioning services.
- We provide remote and on-site technical support.
- We provide troubleshooting services and respond to customer
inquiries.
- We provide preventive maintenance services to keep the machine
running smoothly.
- We provide spare parts supply and repair services.
- We provide training and technical guidance.
If you have any questions or need technical support for Roll
Forming Machine, please don't hesitate to contact us. We are here
to help you.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
