Product Description:
Purlin Roll Forming Machine is designed to produce high-quality C
purlin and Z purlin with precise cutting tolerance of ≤±1 mm. This
roll forming machine is equipped with a PLC control system, 18
roller stations, and servo motor power system. It is capable of
processing material thickness of 1.5-3.0mm, and comes with a
hydraulic cutting system for high efficiency.
Features:
- Product Name: Purlin Roll Forming Machine
- Cutting Length Accuracy: ±1mm
- Roller Stations: 18 Stations
- Material Thickness: 1.5-3.0mm
- Control System: PLC
- Hydraulic Cutting
- Size changing automatically
- Z purlin
- C purlin

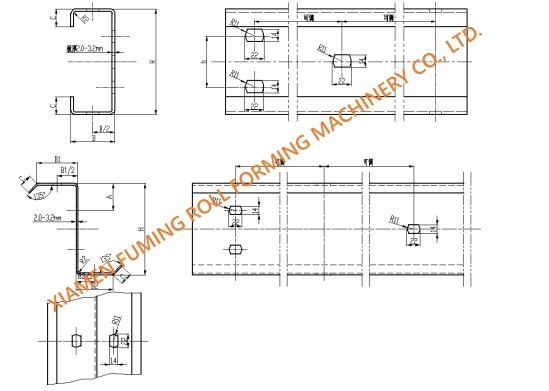

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR AUTO CZ PURLIN |
|
| Material Specification |
| Thickness | 1.5mm to 3.0mm |
| Size | C80-C300, Z100-Z300 or customized |
| Flange | 40mm~100mm or customized |
| Lip | 10mm~25mm or customized |
| Material | GI, cold rolled steel |
| Yield strength | 345MPa |
|
| Machine Components |
| Pre-leveling Device |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set,
Manual control |
|
| Hydraulic Pre-shearing device, Pre-notching and Pre-punching device |
| Function of pre-shearing devic | Smart cut control, to cut off the end of the final piece of sheet
only |
| Cutting blade material | Cr12, heat treatment |
| Notching tool material | Cr12, heat treatment |
| Punching tool material | Cr12, heat treatment |
| Hydraulic pump motor | 11KW |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 18 stages |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ75mm |
| Servo motor to drive | 36KW |
| Motor for size changing | 1.5KW×1+0.75KW×2+0.18KW×2 |
| Line speed of rollformer | Approx. 25m/min or customized |
|
| Hydraulic Post Cutting Device |
| Cutting device is movable on the linear rail | |
| Cutting type | Slug breaker |
| Cutting tool material | Cr12, Heat treatment |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1 mm |
| Punching tolerance | ≤±1 mm |
| Control Voltage | 24V |
|
| Product Rack | Un-powered, one unit |
