Product Description:
Purlin Roll Forming Machine is designed to produce high-quality U
purlin with precise cutting tolerance of ≤±1 mm. This roll forming
machine is equipped with a PLC control system, 20 roller stations,
and servo motor power system. It is capable of processing material
thickness of 6.0-8.0mm, and comes with a hydraulic cutting system
for high efficiency.
Features:
- Product Name: Purlin Roll Forming Machine
- Cutting Length Accuracy: ±1mm
- Roller Stations: 20 Stations
- Material Thickness: 6.0-8.0mm
- Control System: PLC
- Hydraulic Cutting
- Size changing automatically
- U purlin

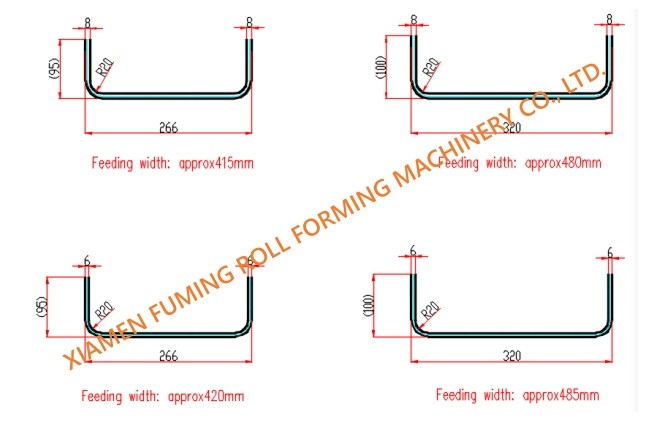

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR 8MM U PROFILE(SIZE CHANGING AUTOMATICALLY) |
|
| Material Specification |
| Thickness | 6mm to 8mm |
| Web | 266mm to 320mm or customized |
| Flange | 95mm to 100mm or customized |
| Feeding width | 432mm~508mm |
| Material | Hot rolled steel |
| Yield strength | 250MPa to 550MPa |
|
|
| Machine Components |
| 5Ton*600mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 4KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
|
| Pneumatic Shoveling Device |
| Material head shoveling device to drive the feed-in table, air
source provied by the user |
| |
| Power Feed-in Device |
| Driving system | Gear/sprocket |
| Motor | 7.5KW |
| Stations to feed in | 4 |
| Lifting of the upper shafts | Controlled pneumatically |
| |
| Pre-leveling Device |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set,
Manual control |
|
| Hydraulic Pre-shearing device |
| Function of pre-shearing devic | Smart cut control, to cut off the end of the final piece of
sheet,cut to length control, manual clutch to assit |
| Cutting blade material | Cr12Mov, heat treatment |
| Spraying cooling system for cutting blade | 1 unit |
| Hydraulic pump motor | 15KW |
|
| Roll Forming Machine |
| Driving system | Toroidal worm box |
| Forming station | 20 stations |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Shafts Diameter | Φ105~110mm |
| Servo motor to drive | 22KW×2 |
| Motor for size changing | 2.2KW |
| Line speed of rollformer | Approx. 10m/min or customized |
| Spraying cooling system | Between certain stations |
|
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1 mm |
| Punching tolerance | ≤±1 mm |
| Control Voltage | 24V |
|
| Product Rack | 3 meters×2 |
Applications:
The Purlin Roll Forming Machine from XIAMEN FUMING is a powerful and versatile production line that is designed to
produce U Purlin in large quantities. This product features 20 Stations for forming the purlins. With its advanced technology, this
machine is able to produce high quality and durable purlins in a
short time. It is also cost effective and efficient, and can be
used in various industrial applications. The Purlin Roll Forming
Machine from XIAMEN FUMING is perfect for companies looking for a
reliable and efficient way to produce purlin in large quantities.
Support and Services:
Technical Support and Service for Purlin Roll Forming Machine
We provide comprehensive technical support and service for Purlin
Roll Forming Machine. Our team of experienced engineers and
technicians can help you achieve optimal usage of the machine and
maximize its performance.
- We provide professional installation and commissioning services.
- We provide remote and on-site technical support.
- We provide troubleshooting services and respond to customer
inquiries.
- We provide preventive maintenance services to keep the machine
running smoothly.
- We provide spare parts supply and repair services.
- We provide training and technical guidance.
If you have any questions or need technical support for Purlin Roll
Forming Machine, please don't hesitate to contact us. We are here
to help you.
