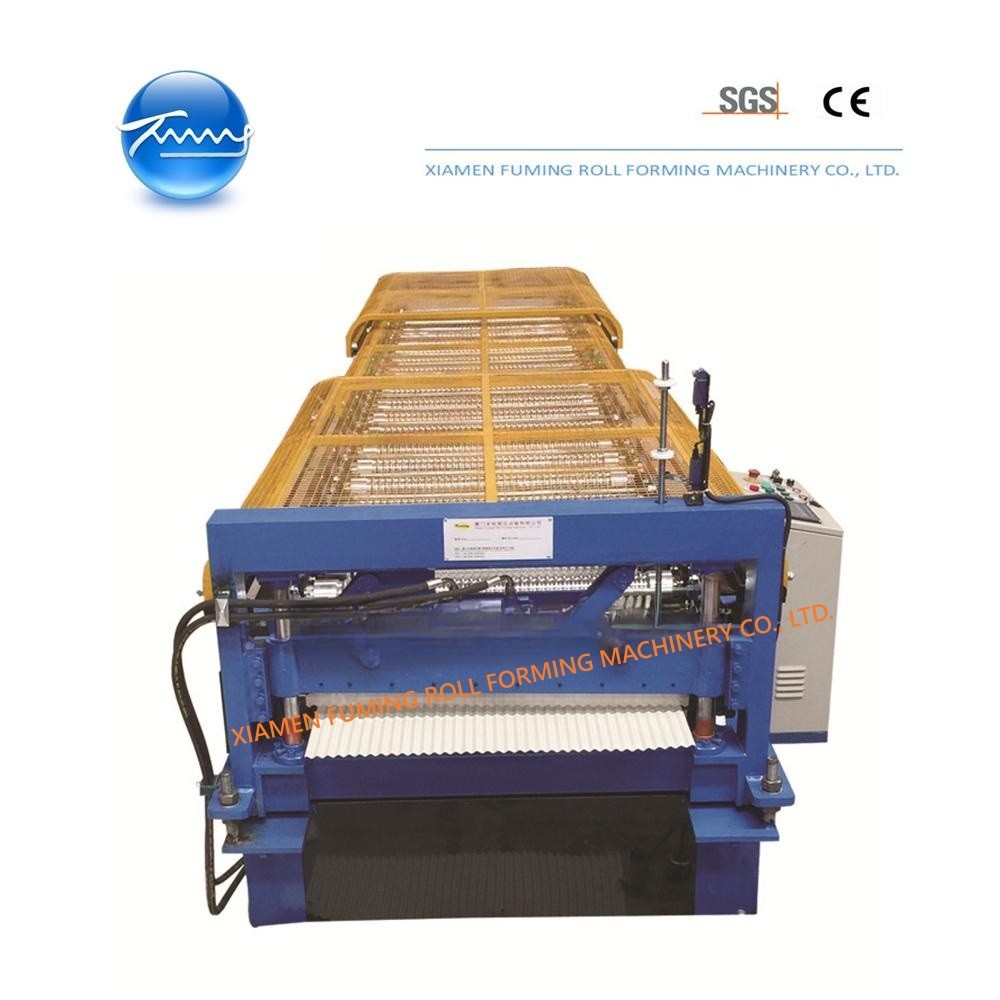

Product Description:
The Roof Panel Roll Forming Machine is designed to meet the high
performance requirements. It adopts the PLC control system,
transmission with gear/sprocket, and has a high precision cutting
length. This Roof Panel Forming Machine is ideal for producing roof
panels with high accuracy, high efficiency and stable performance.
With a wide range of applications, it is an ideal choice for roof
panel forming operation. Its advanced technology ensures a
reliable, efficient and safe operation in various environments.
Features:
- Product Name: Roof Panel Roll Forming Machine for YX10-32-864 Kliplok Profile
- Roller Station: 18 Stations
- Material: GI, PPGI
- Transmission: Gear/sprocket
- Forming Speed: 15m/min
- Drive Type: Motor Driving
- Roof Panel/Roofing Sheet Roll Forming Machine
Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR YX10-32-864 CORRUGATED PROFILE |
|
| Material Specification |
| Thickness | 0.5mm to 0.8mm |
| Effective width | 864+/-5mm |
| Feeding width | Approx.1000mm |
| Material | PPGI |
| Yield strength | 250MPa |
|
| Machine Components |
| 5Ton*1250mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
|
| Roll Forming Machine |
| Driving system | Gear/sprocket |
| Forming station | 18 stations |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Shafts Diameter | Φ75/Φ95mm |
| Main motor | 5.5KW |
| Line speed of rollformer | Approx. 15m/min |
|
| Hydraulic Cutting Device |
| Cutting type | No Blanking cut |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 3KW |
|
| PLC Control System |
| Function | Control the quantity & cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm |
| Control Voltage | 24V |
|
| Product Rack | Un-powered, three units |
Applications:
XIAMEN FUMING Roof Panel Roll Forming Machine, model number
YX10-32-864, is a reliable and cost-effective equipment. The
voltage requirement of the machine is customized.
Support and Services:
Roof Panel Roll Forming Machine Technical Support and Services
We provide comprehensive support for Roof Panel Roll Forming
Machines, including:
- Remote technical support
- On-site maintenance and repair services
- Training and consultation to ensure optimal operation
- Warranty service
Our team of experienced professionals will work with you to ensure
your Roof Panel Roll Forming Machine is running efficiently and
reliably.
If you have any questions or require support for your Roof Panel
Roll Forming Machine, please contact us.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver
qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party
to XIAMEN FUMING’s factory to do machine inspection before
delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for
machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct
operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation
and commissioning once you get your machine ready(including
electricity, testing material, hydraulic oil, auxiliary staff,
transport and lifting device, etc.), they will instruct your
technician how to operate the machine. Online supports including
video call will be provided if our engineers cannot visit your
place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the
latest market trend and the specific requirements suggested by
customers.
